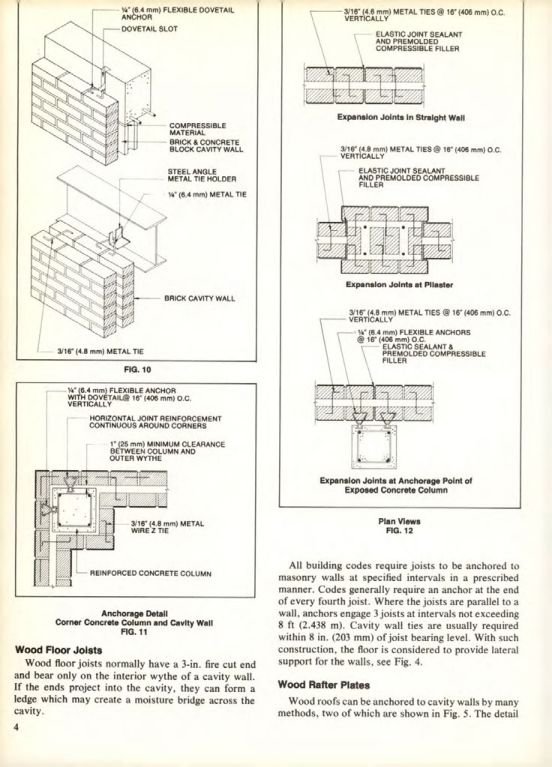

Masonry Magazine January 1979 Page. 20
14" (6.4 mm) FLEXIBLE DOVETAIL ANCHOR
3/16" (4.6 mm) METAL TIES @ 16" (406 mm) O.C. VERTICALLY
DOVETAIL SLOT
ELASTIC JOINT SEALANT AND PREMOLDED COMPRESSIBLE FILLER
COMPRESSIBLE MATERIAL
BRICK & CONCRETE BLOCK CAVITY WALL
STEEL ANGLE
METAL TIE HOLDER
14" (6.4 mm) METAL TIE
Expansion Joints in Straight Wall
3/16" (4.8 mm) METAL TIES 16" (406 mm) O.C. VERTICALLY
ELASTIC JOINT SEALANT AND PREMOLDED COMPRESSIBLE FILLER
BRICK CAVITY WALL
Expansion Joints at Pilaster
3/16" (4.8 mm) METAL TIES @ 16" (406 mm) O.C. VERTICALLY
(6.4 mm) FLEXIBLE ANCHORS @16" (406 mm) O.C.
ELASTIC SEALANT & PREMOLDED COMPRESSIBLE FILLER
3/16" (4.8 mm) METAL TIE
FIG. 10
14" (6.4 mm) FLEXIBLE ANCHOR WITH DOVETAIL@ 16" (406 mm) 0.C. VERTICALLY
HORIZONTAL JOINT REINFORCEMENT CONTINUOUS AROUND CORNERS
1 (25 mm) MINIMUM CLEARANCE BETWEEN COLUMN AND OUTER WYTHE
3/16" (4.8 mm) METAL WIRE Z TIE
Expansion Joints at Anchorage Point of Exposed Concrete Column
Plan Views
FIG. 12
REINFORCED CONCRETE COLUMN
Anchorage Detail
Corner Concrete Column and Cavity Wall
FIG. 11
Wood Floor Joists
Wood floor joists normally have a 3-in. fire cut end and bear only on the interior wythe of a cavity wall. If the ends project into the cavity, they can form a ledge which may create a moisture bridge across the cavity.
All building codes require joists to be anchored to masonry walls at specified intervals in a prescribed manner. Codes generally require an anchor at the end of every fourth joist. Where the joists are parallel to a wall, anchors engage 3 joists at intervals not exceeding 8 ft (2.438 m). Cavity wall ties are usually required within 8 in. (203 mm) of joist bearing level. With such construction, the floor is considered to provide lateral support for the walls, see Fig. 4.
Wood Rafter Plates
Wood roofs can be anchored to cavity walls by many methods, two of which are shown in Fig. 5. The detail
