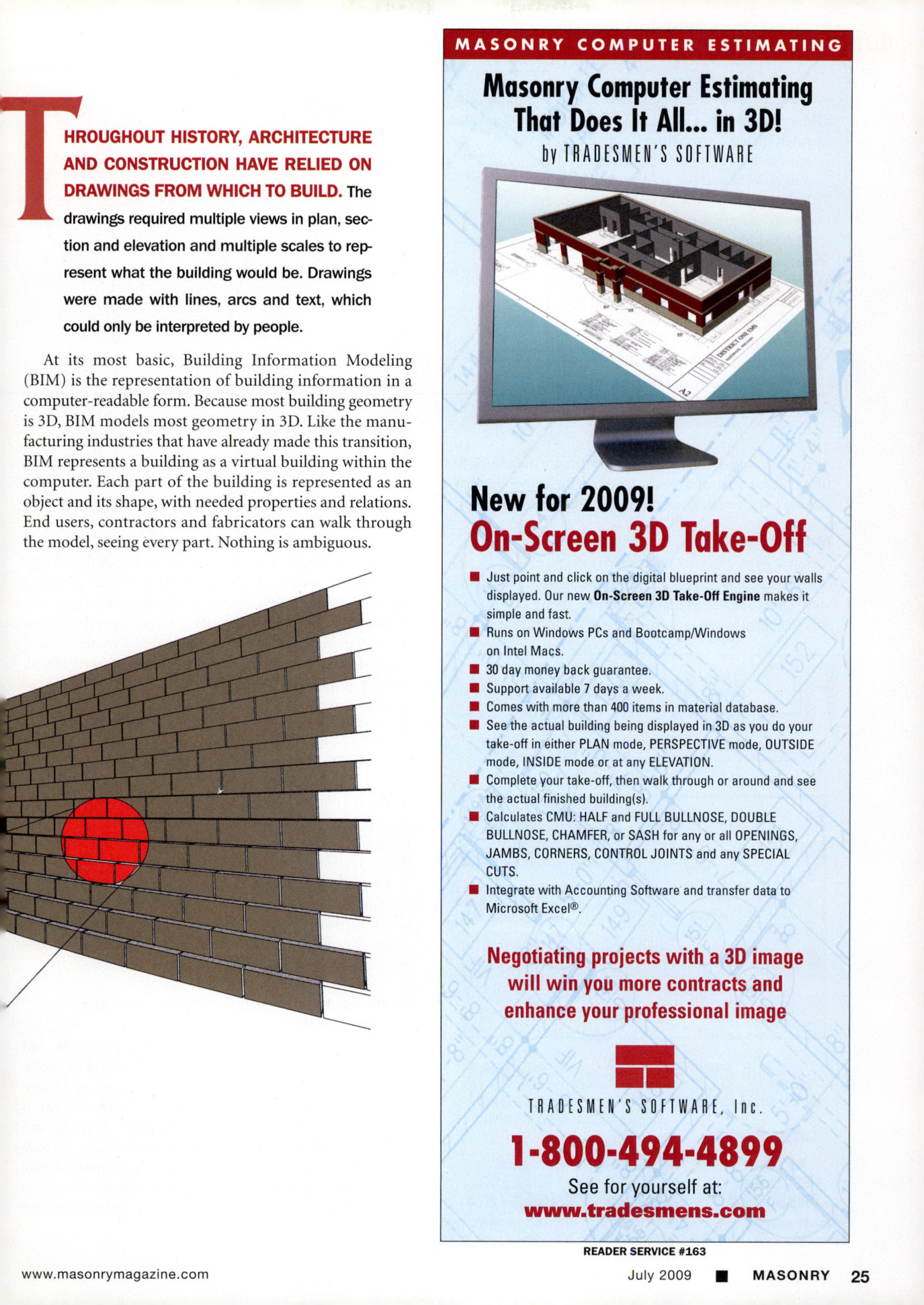

Masonry Magazine July 2009 Page. 27
MASONRY COMPUTER ESTIMATING
Masonry Computer Estimating
That Does It All... in 3D!
by TRADESMEN'S SOFTWARE
Throughout history, architecture and construction have relied on drawings from which to build. The drawings required multiple views in plan, section and elevation and multiple scales to represent what the building would be. Drawings were made with lines, arcs and text, which could only be interpreted by people.
At its most basic, Building Information Modeling (BIM) is the representation of building information in a computer-readable form. Because most building geometry is 3D, BIM models most geometry in 3D. Like the manufacturing industries that have already made this transition, BIM represents a building as a virtual building within the computer. Each part of the building is represented as an object and its shape, with needed properties and relations. End users, contractors and fabricators can walk through the model, seeing every part. Nothing is ambiguous.
New for 2009!
On-Screen 3D Take-Off
Just point and click on the digital blueprint and see your walls displayed. Our new On-Screen 30 Take-Off Engine makes it simple and fast.
Runs on Windows PCs and Bootcamp/Windows on Intel Macs.
30 day money back guarantee.
Support available 7 days a week.
Comes with more than 400 items in material database.
See the actual building being displayed in 3D as you do your take-off in either PLAN mode, PERSPECTIVE mode, OUTSIDE mode, INSIDE mode or at any ELEVATION.
Complete your take-off, then walk through or around and see the actual finished building(s).
Calculates CMU: HALF and FULL BULLNOSE, DOUBLE BULLNOSE, CHAMFER, or SASH for any or all OPENINGS, JAMBS, CORNERS, CONTROL JOINTS and any SPECIAL CUTS.
Integrate with Accounting Software and transfer data to Microsoft Excel®
Negotiating projects with a 3D image will win you more contracts and enhance your professional image
TRADESMEN'S SOFTWARE, Inc.
1-800-494-4899
See for yourself at:
www.tradesmens.com
