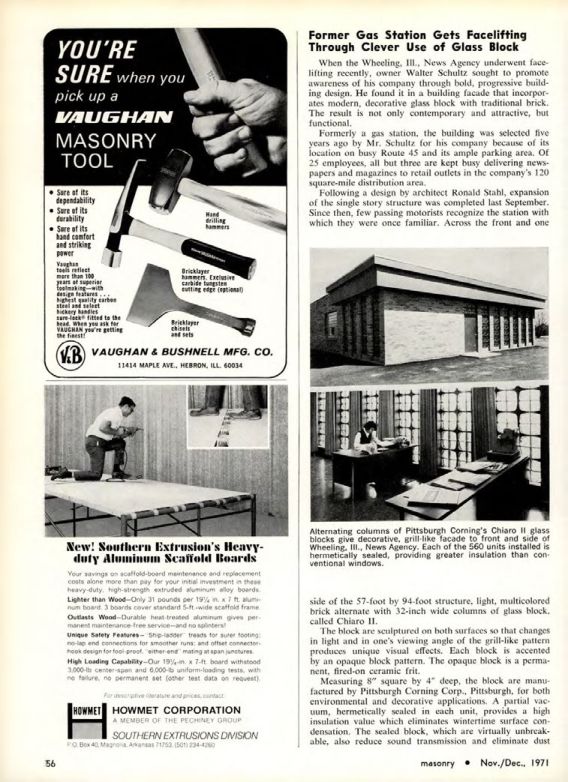

Masonry Magazine January 1971 Page.56
YOU'RE SURE when you pick up a VAUGHAN MASONRY TOOL
* Sure of its dependability
* Sure of its durability
* Sure of its hand comfort and striking power
Vaughan tools reflect more than 100 years of superior toolmaking-with design features... highest quality carbon steel and select hickory handles sure-lock fitted to the head. When you ask for VAUGHAN you're getting the finest!
VAUGHAN & BUSHNELL MFG. CO.
11414 MAPLE AVE., HEBRON, ILL. 60034
Former Gas Station Gets Facelifting Through Clever Use of Glass Block
When the Wheeling, III., News Agency underwent face-lifting recently, owner Walter Schultz sought to promote awareness of his company through bold, progressive building design. He found it in a building facade that incorporates modern, decorative glass block with traditional brick. The result is not only contemporary and attractive, but functional.
Formerly a gas station, the building was selected five years ago by Mr. Schultz for his company because of its location on busy Route 45 and its ample parking area. Of 25 employees, all but three are kept busy delivering newspapers and magazines to retail outlets in the company's 120 square-mile distribution area.
Following a design by architect Ronald Stahl, expansion of the single story structure was completed last September. Since then, few passing motorists recognize the station with which they were once familiar. Across the front and one
Alternating columns of Pittsburgh Corning's Chiaro II glass blocks give decorative, grill-like facade to front and side of Wheeling, III., News Agency. Each of the 560 units installed is hermetically sealed, providing greater insulation than conventional windows.
side of the 57-foot by 94-foot structure, light, multicolored brick alternate with 32-inch wide columns of glass block, called Chiaro II.
The block are sculptured on both surfaces so that changes in light and in one's viewing angle of the grill-like pattern produces unique visual effects. Each block is accented by an opaque block pattern. The opaque block is a permanent, fired-on ceramic frit.
Measuring 8" square by 4" deep, the block are manufactured by Pittsburgh Corning Corp., Pittsburgh, for both environmental and decorative applications. A partial vacuum, hermetically sealed in each unit, provides a high insulation value which eliminates wintertime surface condensation. The sealed block, which are virtually unbreakable, also reduce sound transmission and eliminate dust
New! Southern Extrusion's Heavy- duty Aluminum Scaffold Boards
Your savings on scaffold-board maintenance and replacement costs alone more than pay for your initial investment in these heavy-duty, high-strength extruded aluminum alloy boards. Lighter than Wood-Only 31 pounds per 19% in. x 7 ft. aluminum board. 3 boards cover standard 5-ft-wide scaffold frame.
Outlasts Wood-Durable heat-treated aluminum gives permanent maintenance-free service-and no splinters!
Unique Safety Features Ship-ladder treads for surer footing: no-lap end connections for smoother runs: and offset connector hook design for fool-proof, either-end mating at span junctures.
High Loading Capability-Our 19%-in. x 7-ft board withstood 3,000-lb center-span and 6,000-lb uniform-loading tests, with no failure, no permanent set (other test data on request).
