Masonry Magazine January 1971 Page.104

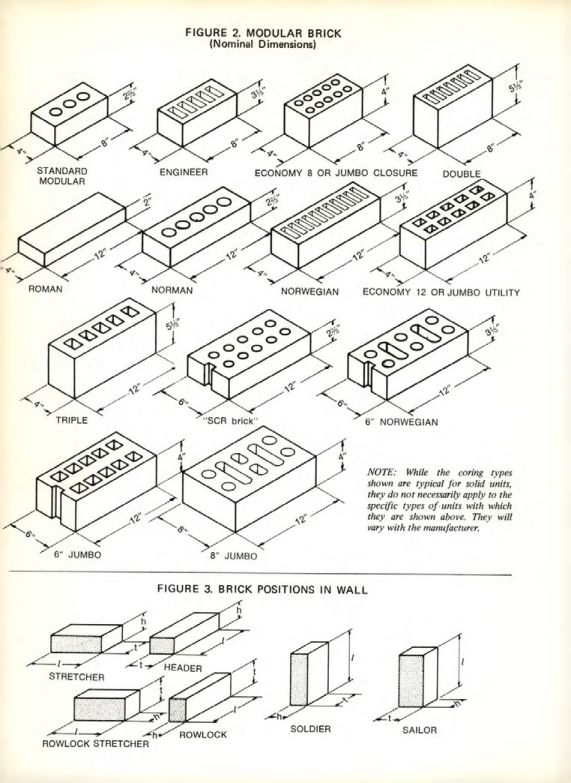

FIGURE 2. MODULAR BRICK
(Nominal Dimensions)
`
STANDARD
MODULAR
`
ENGINEER
`
ECONOMY 8 OR JUMBO CLOSURE
`
DOUBLE
`
ROMAN
`
NORMAN
`
NORWEGIAN
`
ECONOMY 12 OR JUMBO UTILITY
`
TRIPLE
`
"SCR brick"
`
6" NORWEGIAN
`
6" JUMBO
`
8" JUMBO
NOTE: While the coring types shown are typical for solid units, they do not necessarily apply to the specific types of units with which they are shown above. They will vary with the manufacturer.
FIGURE 3. BRICK POSITIONS IN WALL
`
STRETCHER
`
HEADER
`
ROWLOCK STRETCHER
`
ROWLOCK
`
SOLDIER
`
SAILOR
