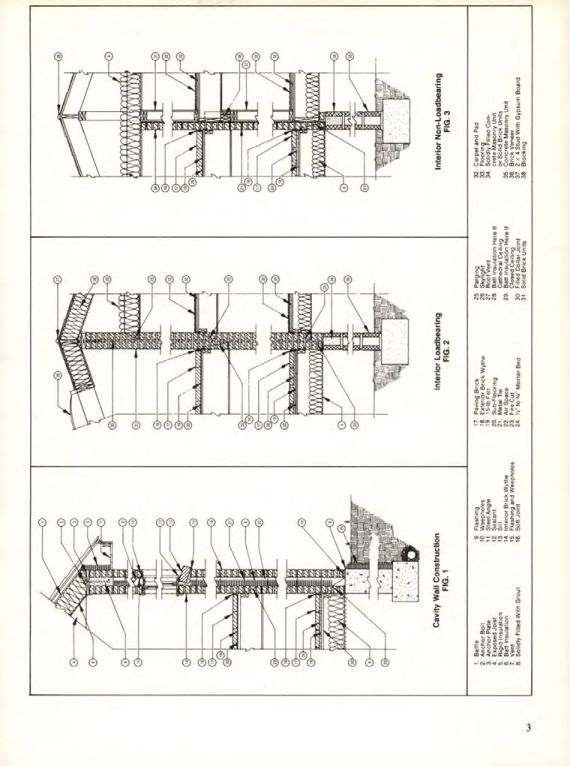

Cavity Wall Construction
FIG. 1
1. Batte
2. Anchor Bolt
3. Anchor Plate
4. Exposed Joist
5. Batt Insulation
6. Rigid Insulation
7. Vent
8. Solidly Fitted With Grout
9. Flashing
10. Weepholes
11. Steel Angle
12. Sealant
13 51
14. Interior Brick Wythe
15. Flashing and Weepholes
16. Soft Joint
Interior Loadbearing
FIG. 2
17. Paving Brick
18. 15-lb Felt
19. Sub-Flooring
20. Metal Tie
21. Fire Cut
22. Air Space
23. Fire Cut
24. ¼" to ¾" Mortar Bed
25. Parging
26. Roof Vent
27. Batt Insulation Here if Cathedral Ceiling
28. Batt Insulation Here if Cathedral Ceiling
29. Closed Ceiling
30. Filled Collar Joint
31. Solid Brick Units
Interior Non-Loadbearing
FIG. 3
32. Carpet and Pad
33. Flooring
34. Solidly Filled Concrete Masonry Unit or Solid Brick Units
35. Concrete Masonry Unit
36. Brick Veneer
37. 2x4 Stud With Gypsum Board
38 Blocking
