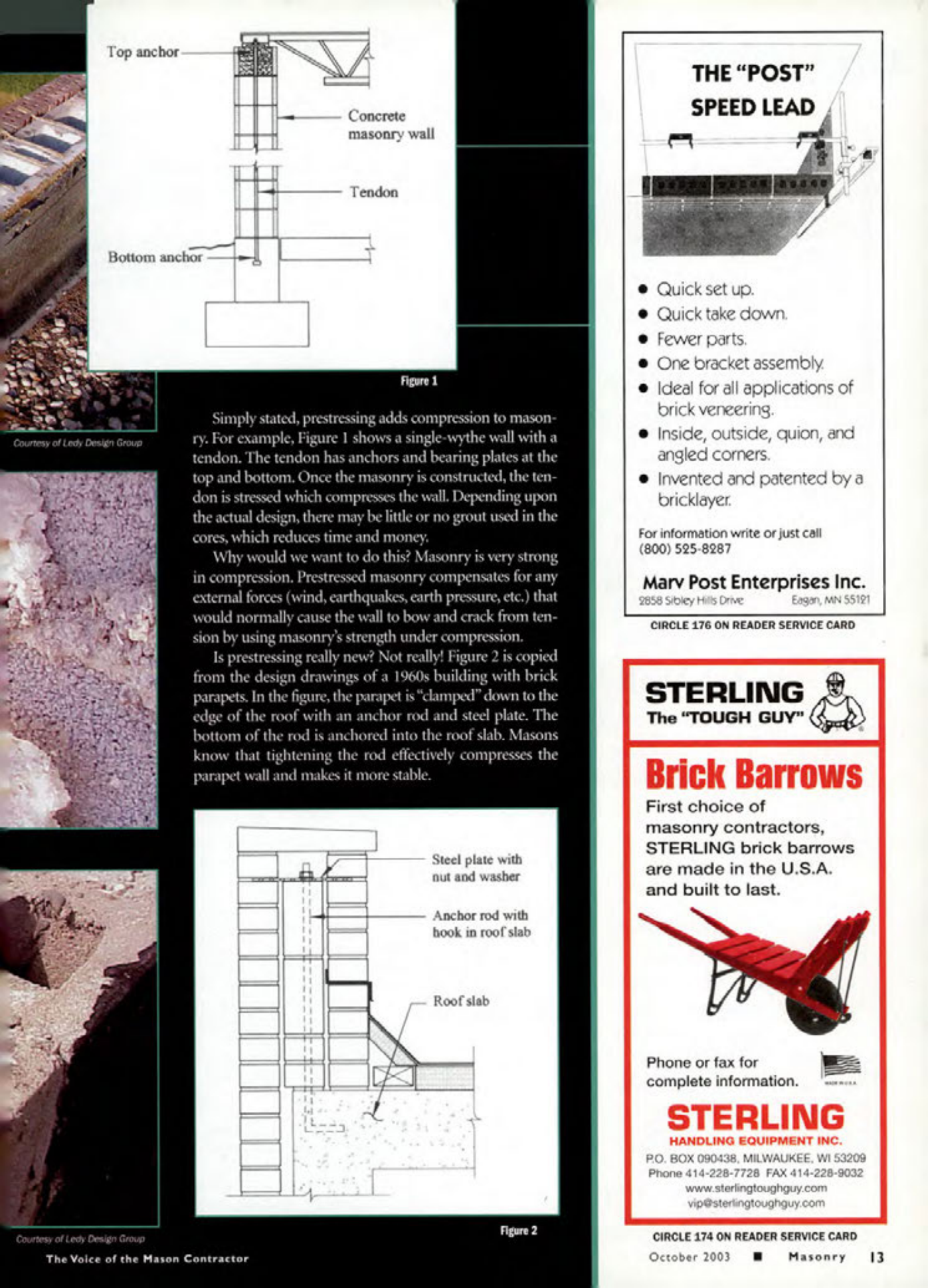

Simply stated, prestressing adds compression to masonry. For example, Figure 1 shows a single-wythe wall with a tendon. The tendon has anchors and bearing plates at the top and bottom. Once the masonry is constructed, the tendon is stressed which compresses the wall. Depending upon the actual design, there may be little or no grout used in the cores, which reduces time and money.
Why would we want to do this? Masonry is very strong in compression. Prestressed masonry compensates for any external forces (wind, earthquakes, earth pressure, etc.) that would normally cause the wall to bow and crack from tension by using masonry's strength under compression.
Is prestressing really new? Not really! Figure 2 is copied from the design drawings of a 1960s building with brick parapets. In the figure, the parapet is "clamped" down to the edge of the roof with an anchor rod and steel plate. The bottom of the rod is anchored into the roof slab. Masons know that tightening the rod effectively compresses the parapet wall and makes it more stable.
