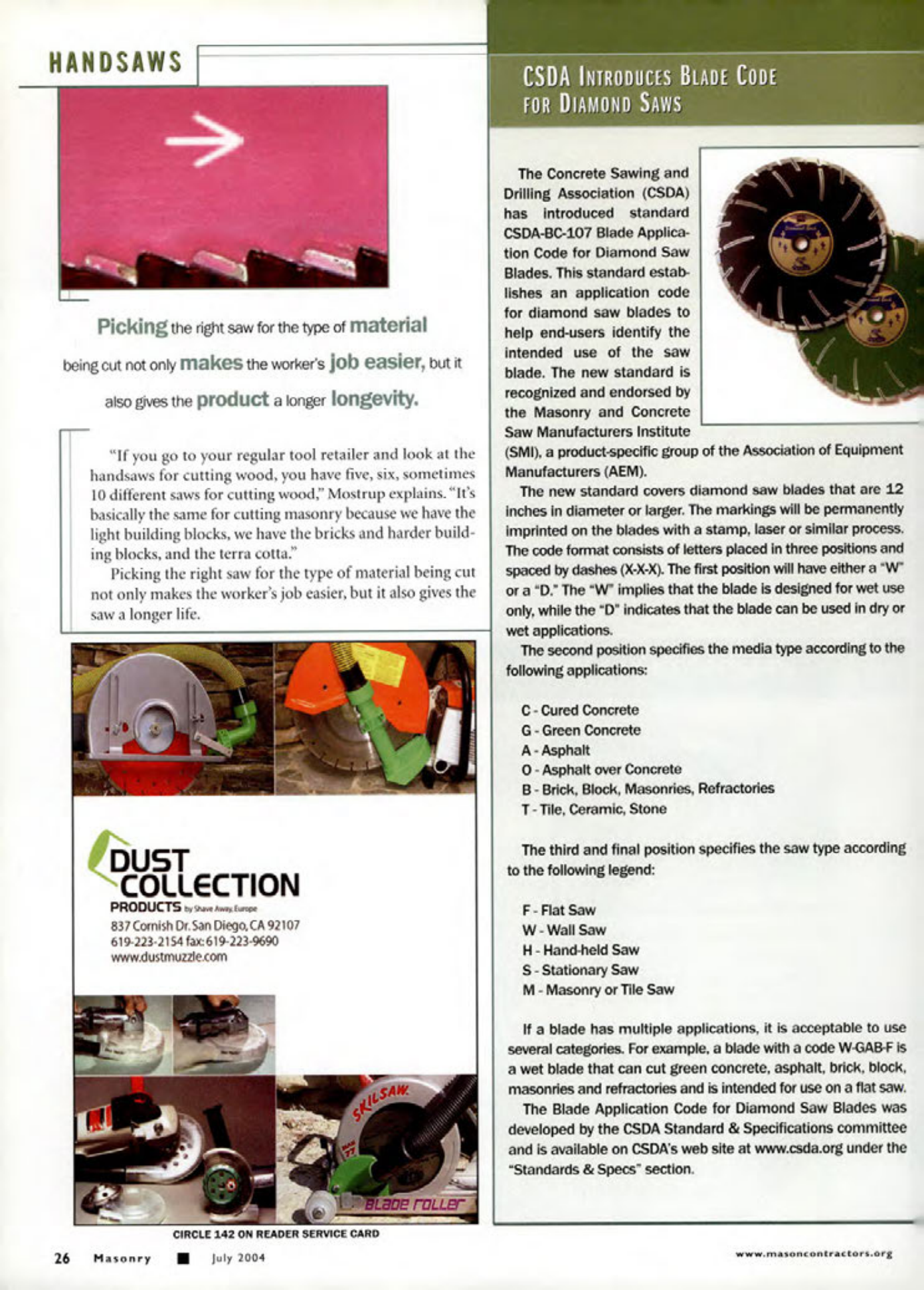

Masonry Magazine July 2004 Page. 28
HANDSAWS
Picking the right saw for the type of material being cut not only makes the worker's job easier, but it also gives the product a longer longevity.
"If you go to your regular tool retailer and look at the handsaws for cutting wood, you have five, six, sometimes 10 different saws for cutting wood," Mostrup explains. "It's basically the same for cutting masonry because we have the light building blocks, we have the bricks and harder building blocks, and the terra cotta."
Picking the right saw for the type of material being cut not only makes the worker's job easier, but it also gives the saw a longer life.
DUST
COLLECTION
PRODUCTS
Supe
837 Cornish Dr. San Diego, CA 92107
619-223-2154 fax: 619-223-9690
www.dustmuzzle.com
SKILSAW
CSDA INTRODUCES BLADE CODE FOR DIAMOND SAWS
The Concrete Sawing and Drilling Association (CSDA) has introduced standard CSDA-BC-107 Blade Application Code for Diamond Saw Blades. This standard establishes an application code for diamond saw blades to help end-users identify the intended use of the saw blade. The new standard is recognized and endorsed by the Masonry and Concrete Saw Manufacturers Institute (SMI), a product-specific group of the Association of Equipment Manufacturers (AEM).
The new standard covers diamond saw blades that are 12 inches in diameter or larger. The markings will be permanently imprinted on the blades with a stamp, laser or similar process. The code format consists of letters placed in three positions and spaced by dashes (X-X-X). The first position will have either a "W" or a "D." The "W" implies that the blade is designed for wet use only, while the "D" indicates that the blade can be used in dry or wet applications.
The second position specifies the media type according to the following applications:
C-Cured Concrete
G-Green Concrete
A-Asphalt
O-Asphalt over Concrete
B-Brick, Block, Masonries, Refractories
T-Tile, Ceramic, Stone
The third and final position specifies the saw type according to the following legend:
F-Flat Saw
W-Wall Saw
H-Hand-held Saw
S-Stationary Saw
M-Masonry or Tile Saw
If a blade has multiple applications, it is acceptable to use several categories. For example, a blade with a code W-GAB-F is a wet blade that can cut green concrete, asphalt, brick, block, masonries and refractories and is intended for use on a flat saw.
The Blade Application Code for Diamond Saw Blades was developed by the CSDA Standard & Specifications committee and is available on CSDA's web site at www.csda.org under the "Standards & Specs" section.
