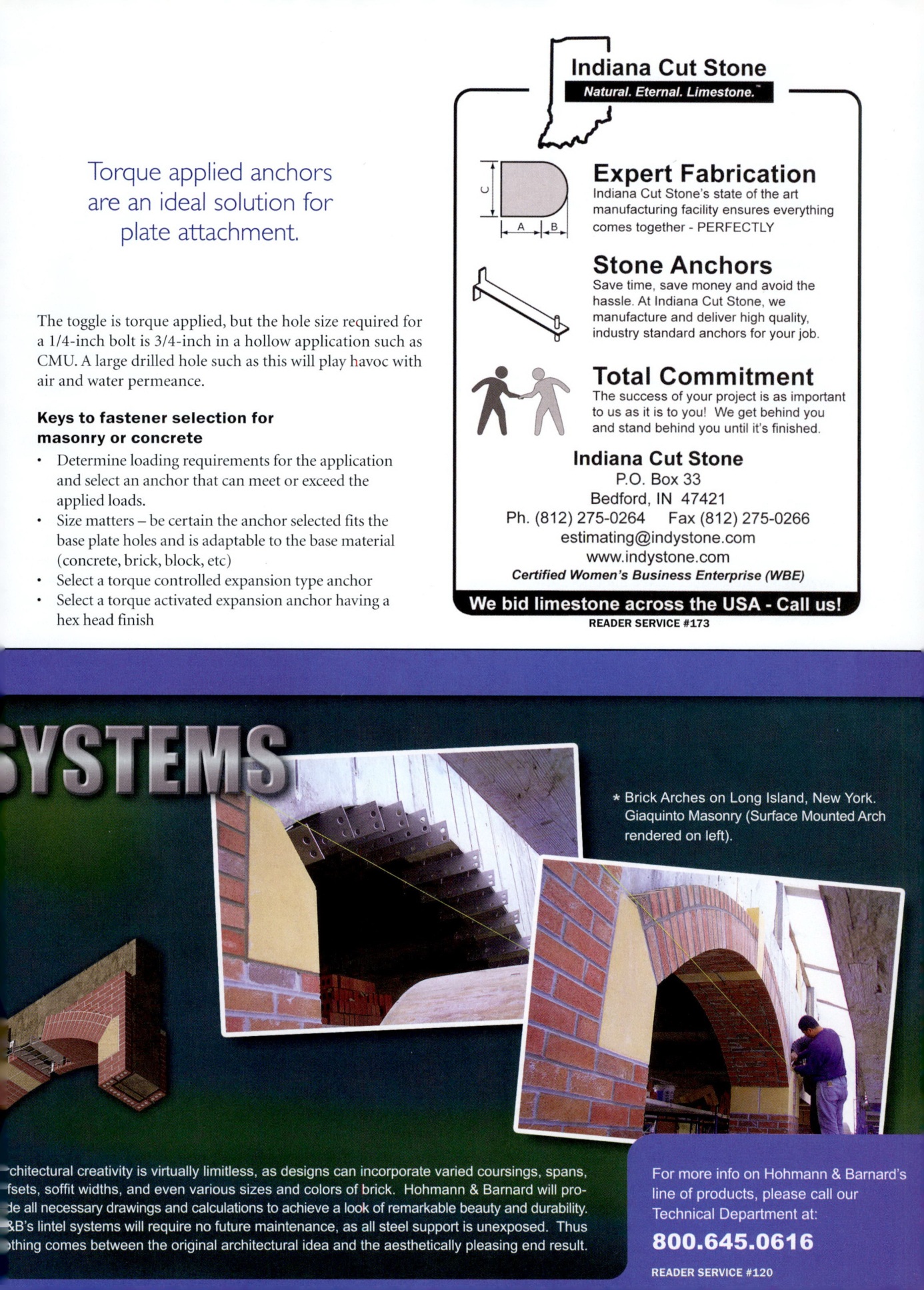

Masonry Magazine May 2010 Page. 19
Indiana Cut Stone
Natural. Eternal. Limestone.
Torque applied anchors
are an ideal solution for plate attachment.
The toggle is torque applied, but the hole size required for a 1/4-inch bolt is 3/4-inch in a hollow application such as CMU. A large drilled hole such as this will play havoc with air and water permeance.
Keys to fastener selection for
masonry or concrete
Determine loading requirements for the application and select an anchor that can meet or exceed the applied loads.
Size matters-be certain the anchor selected fits the base plate holes and is adaptable to the base material (concrete, brick, block, etc)
Select a torque controlled expansion type anchor
Select a torque activated expansion anchor having a hex head finish
