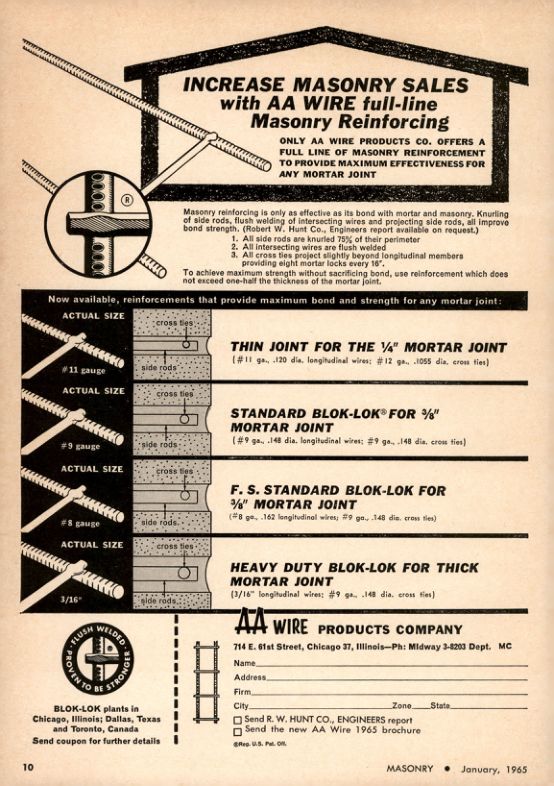

Masonry Magazine January 1965 Page. 10
INCREASE MASONRY SALES
with AA WIRE full-line
Masonry Reinforcing
ONLY AA WIRE PRODUCTS CO. OFFERS A
FULL LINE OF MASONRY REINFORCEMENT
TO PROVIDE MAXIMUM EFFECTIVENESS FOR
ANY MORTAR JOINT
Masonry reinforcing is only as effective as its bond with mortar and masonry. Knurling of side rods, flush welding of intersecting wires and projecting side rods, all improve bond strength. (Robert W. Hunt Co., Engineers report available on request.)
1. All side rods are knurled 75% of their perimeter
2. All intersecting wires are flush welded
3. All cross ties project slightly beyond longitudinal members providing eight mortar locks every 16".
To achieve maximum strength without sacrificing bond, use reinforcement which does not exceed one-half the thickness of the mortar joint.
Now available, reinforcements that provide maximum bond and strength for any mortar joint:
ACTUAL SIZE
cross ties
#11 gauge
side rods
ACTUAL SIZE
cross ties
#9 gauge
side rods
ACTUAL SIZE
cross ties
#8 gauge
side rods.
ACTUAL SIZE
cross ties
3/16"
side rods.
THIN JOINT FOR THE 14" MORTAR JOINT
(#11 ga., 120 dia. longitudinal wires: #12 ga., 1055 dia, cross ties)
STANDARD BLOK-LOK® FOR 38"
MORTAR JOINT
(#9 ga., 148 dia. longitudinal wires: #9 ga., 148 die. cross ties)
F. S. STANDARD BLOK-LOK FOR
%" MORTAR JOINT
(#8 ga, 162 longitudinal wires; #9 ga., 148 die. cross ties)
HEAVY DUTY BLOK-LOK FOR THICK
MORTAR JOINT
(3/16" longitudinal wires: #9 ga, 148 dia. cross ties)
AA WIRE PRODUCTS COMPANY
714 E. 61st Street, Chicago 37, Illinois-Ph: Midway 3-8203 Dept. MC
Name
Address,
Firm,
City.
Zone.
State
Send R. W. HUNT CO., ENGINEERS report
Send the new AA Wire 1965 brochure
BLOK-LOK plants in
Chicago, Illinois; Dallas, Texas
and Toronto, Canada
Send coupon for further details
