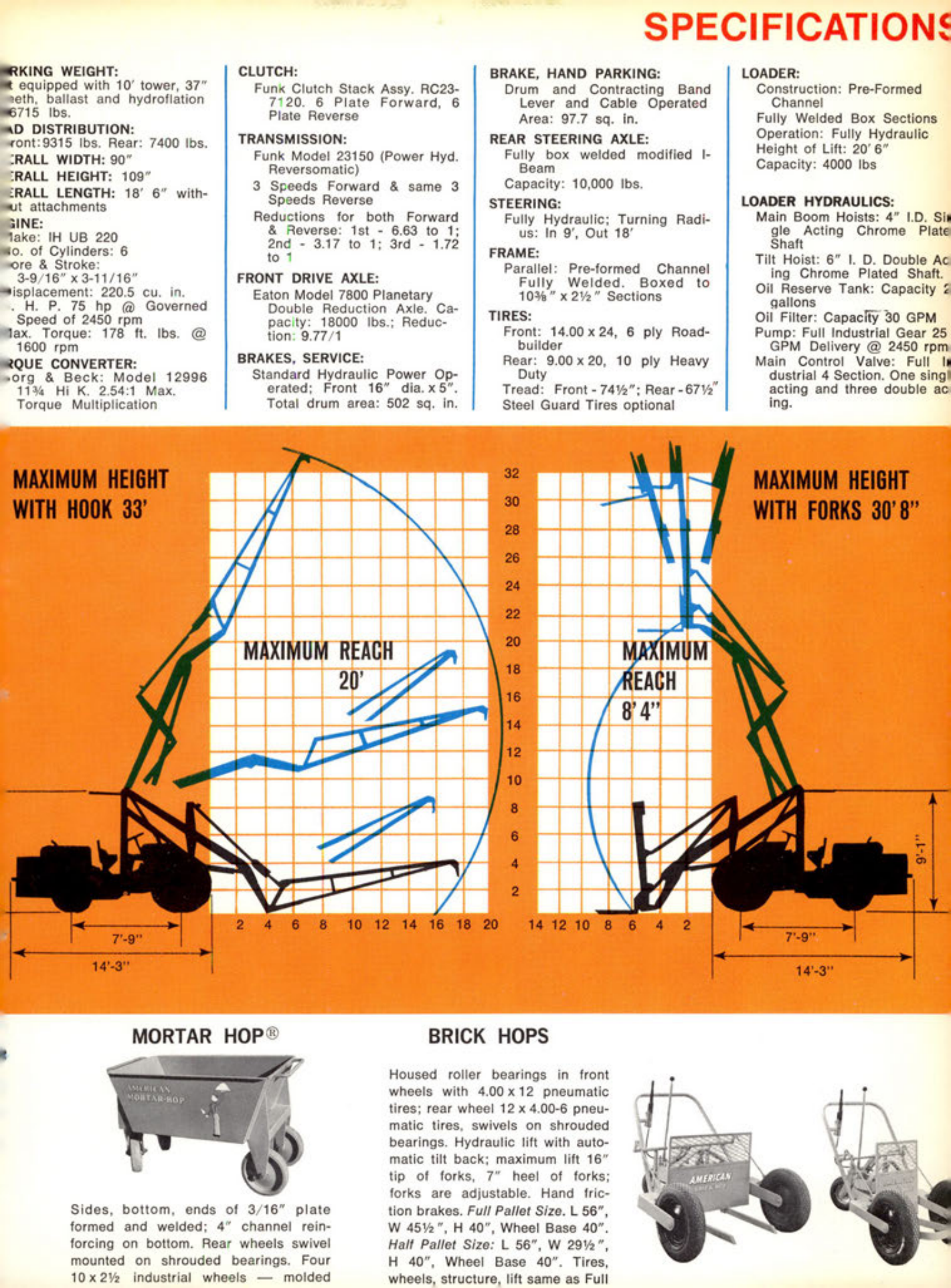

SPECIFICATIONS
WORKING WEIGHT:
Equipped with 10' tower, 37" width, ballast and hydroflation 6715 lbs.
LOAD DISTRIBUTION:
Front: 9315 lbs. Rear: 7400 lbs.
OVERALL WIDTH: 90"
OVERALL HEIGHT: 109"
OVERALL LENGTH: 18' 6" without attachments
ENGINE:
Make: IH UB 220
No. of Cylinders: 6
Bore & Stroke: 3-9/16" x 3-11/16"
Displacement: 220.5 cu. in.
H. P. 75 hp @ Governed Speed of 2450 rpm
Max. Torque: 178 ft. lbs. @ 1600 rpm
TORQUE CONVERTER:
Borg & Beck: Model 12996
11%" Hi K. 2.54:1 Max. Torque Multiplication
CLUTCH:
Funk Clutch Stack Assy. RC23-7120. 6 Plate Forward, 6 Plate Reverse
TRANSMISSION:
Funk Model 23150 (Power Hyd. Reversomatic)
3 Speeds Forward & same 3 Speeds Reverse
Reductions for both Forward & Reverse: 1st 6.63 to 1; 2nd 3.17 to 1: 3rd 1.72 to 1
FRONT DRIVE AXLE:
Eaton Model 7800 Planetary Double Reduction Axle. Capacity: 18000 lbs.; Reduction: 9.77/1
BRAKES, SERVICE:
Standard Hydraulic Power Operated: Front 16" dia. x 5". Total drum area: 502 sq. in.
BRAKE, HAND PARKING:
Drum and Contracting Band Lever and Cable Operated Area: 97.7 sq. in.
REAR STEERING AXLE:
Fully box welded modified I-Beam
Capacity: 10,000 lbs.
STEERING:
Fully Hydraulic: Turning Radius: In 9', Out 18'
FRAME:
Parallel: Pre-formed Channel Fully Welded. Boxed to 10%" x 22" Sections
TIRES:
Front: 14.00 x 24, 6 ply Roadbuilder
Rear: 9.00 x 20, 10 ply Heavy Duty
Tread: Front-74½"; Rear-67½"
Steel Guard Tires optional
LOADER:
Construction: Pre-Formed Channel Fully Welded Box Sections
Operation: Fully Hydraulic
Height of Lift: 20' 6"
Capacity: 4000 lbs
LOADER HYDRAULICS:
Main Boom Hoists: 4" I.D. Single Acting Chrome Plate Shaft
Tilt Hoist: 6" 1. D. Double Acting Chrome Plated Shaft.
Oil Reserve Tank: Capacity 2 gallons
Oil Filter: Capacity 30 GPM
Pump: Full Industrial Gear 25 GPM Delivery @ 2450 rpm
Main Control Valve: Full Industrial 4 Section. One single acting and three double acting.
MAXIMUM HEIGHT WITH HOOK 33'
MAXIMUM REACH 20'
MAXIMUM HEIGHT WITH FORKS 30' 8"
MAXIMUM REACH 8' 4"
MORTAR HOP
Sides, bottom, ends of 3/16" plate formed and welded: 4" channel reinforcing on bottom. Rear wheels swivel mounted on shrouded bearings. Four 10 x 21½ industrial wheels molded
BRICK HOPS
Housed roller bearings in front wheels with 4.00 x 12 pneumatic tires; rear wheel 12 x 4.00-6 pneumatic tires, swivels on shrouded bearings. Hydraulic lift with automatic tilt back; maximum lift 16" tip of forks, 7" heel of forks; forks are adjustable. Hand friction brakes. Full Pallet Size. L 56", W 451½", Η 40", Wheel Base 40". Half Pallet Size: L 56", W 292", H 40", Wheel Base 40". Tires, wheels, structure, lift same as Full
