Marvelous Masonry: Basílica de la Sagrada Família

Words: Cass Stern

The Basílica i Temple Expiatori de la Sagrada Família, one of the most renowned architectural landmarks in the world, stands as a masterpiece of Antoni Gaudí's vision and a remarkable example of how masonry techniques have evolved over time. The construction of this iconic church, which began in 1882 and continues to this day, reflects a dynamic history of traditional craftsmanship and modern innovation. The blending of old-world methods with cutting-edge technologies in the field of masonry has allowed Gaudí's extraordinary vision to become a reality.

When work on the Sagrada Família first began, it followed the typical masonry practices of the time. The project, initiated by architect Francisco de Paula del Villar, was initially designed in a Gothic Revival style. The construction methods were similar to those used for centuries in European cathedral buildings: stone was hand-carved, and bricks were laid with mortar mixed on-site. While effective for the time, these techniques relied heavily on the skill of masons, who would meticulously shape each piece to fit the evolving structure.

In 1883, Antoni Gaudí took over the project, transforming the design and the approach to construction. Gaudí's vision was rooted in the natural world, and he sought to imitate organic forms found in nature, such as the shapes of trees, caves, and mountains. Gaudí required his masons to adapt traditional masonry techniques to bring these forms to life, accommodating a far more complex and ambitious design. Though still reliant on hand-carved stone, the early phases of construction began to introduce new geometric principles. Masons used local Montjuïc stone carved into precise blocks. At the same time, on-site mortar mixing ensured a strong bond between the stones, allowing Gaudí the flexibility he needed in the building's design.



One of the most distinctive elements of Gaudí's architectural approach was his use of geometry. Unlike the more conventional pointed arches found in Gothic cathedrals, Gaudí employed catenary arches, which curve in the shape of a hanging chain. This innovation allowed for a more efficient distribution of weight, enabling the construction of taller and more intricate structures with fewer supports. The masons working on the Sagrada Família were required to master this new approach, adapting their techniques to handle the complex geometries that Gaudí envisioned.

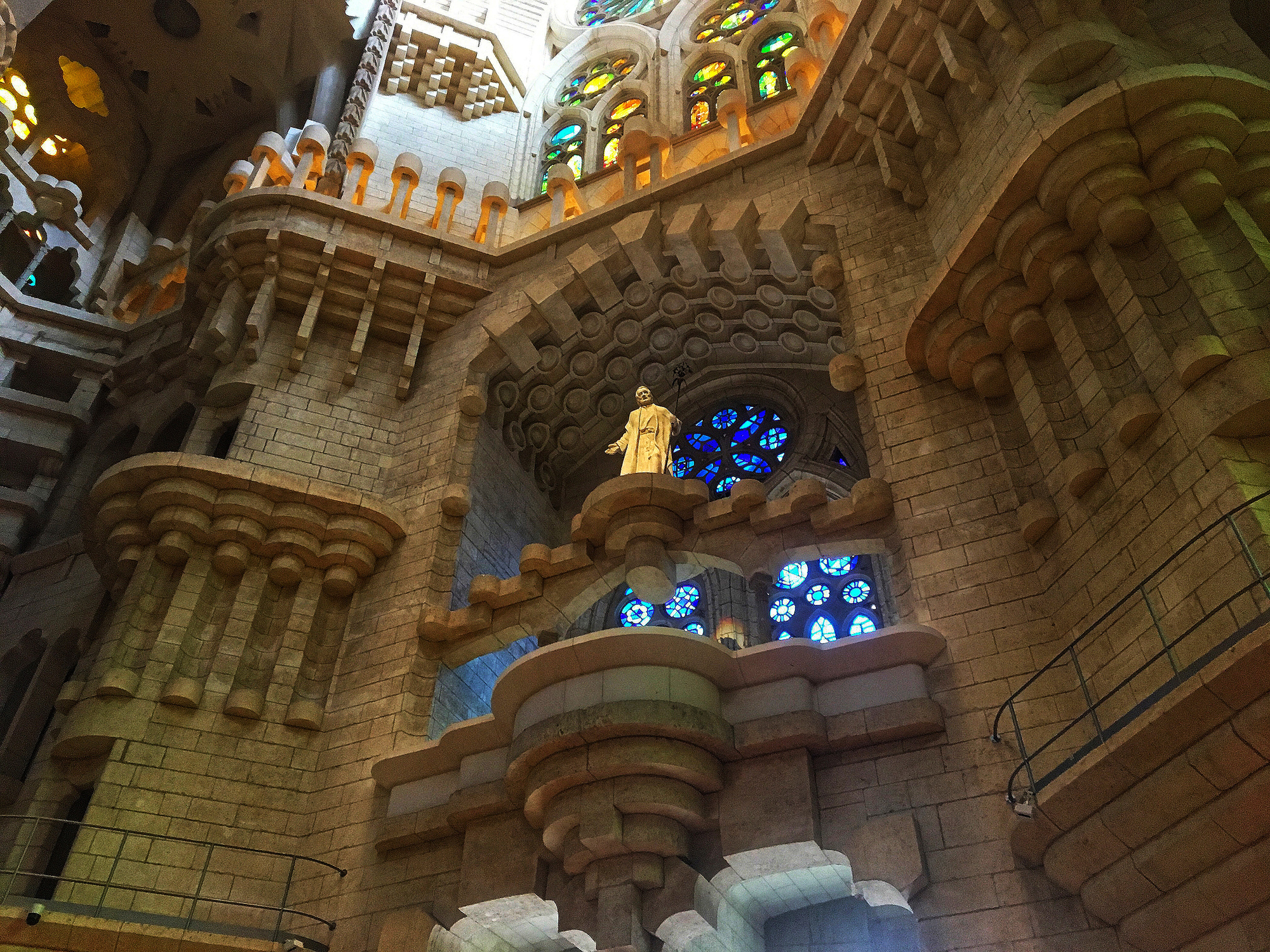

In addition to catenary arches, Gaudí incorporated hyperboloids into the structure, creating light, open spaces that gave the building a sense of airiness. These forms demanded exceptional precision from the masons, who had to shape each stone to fit within the intricate framework of the design. Gaudí's approach to masonry also included intricate carvings that mimicked natural forms, such as trees, leaves, and animal figures. Each stone was carved by hand using traditional tools, with masons following detailed models created by Gaudí to ensure the correct shape and texture. The result was a seamless blend of structural innovation and artistic detail, achieved through meticulous craftsmanship.

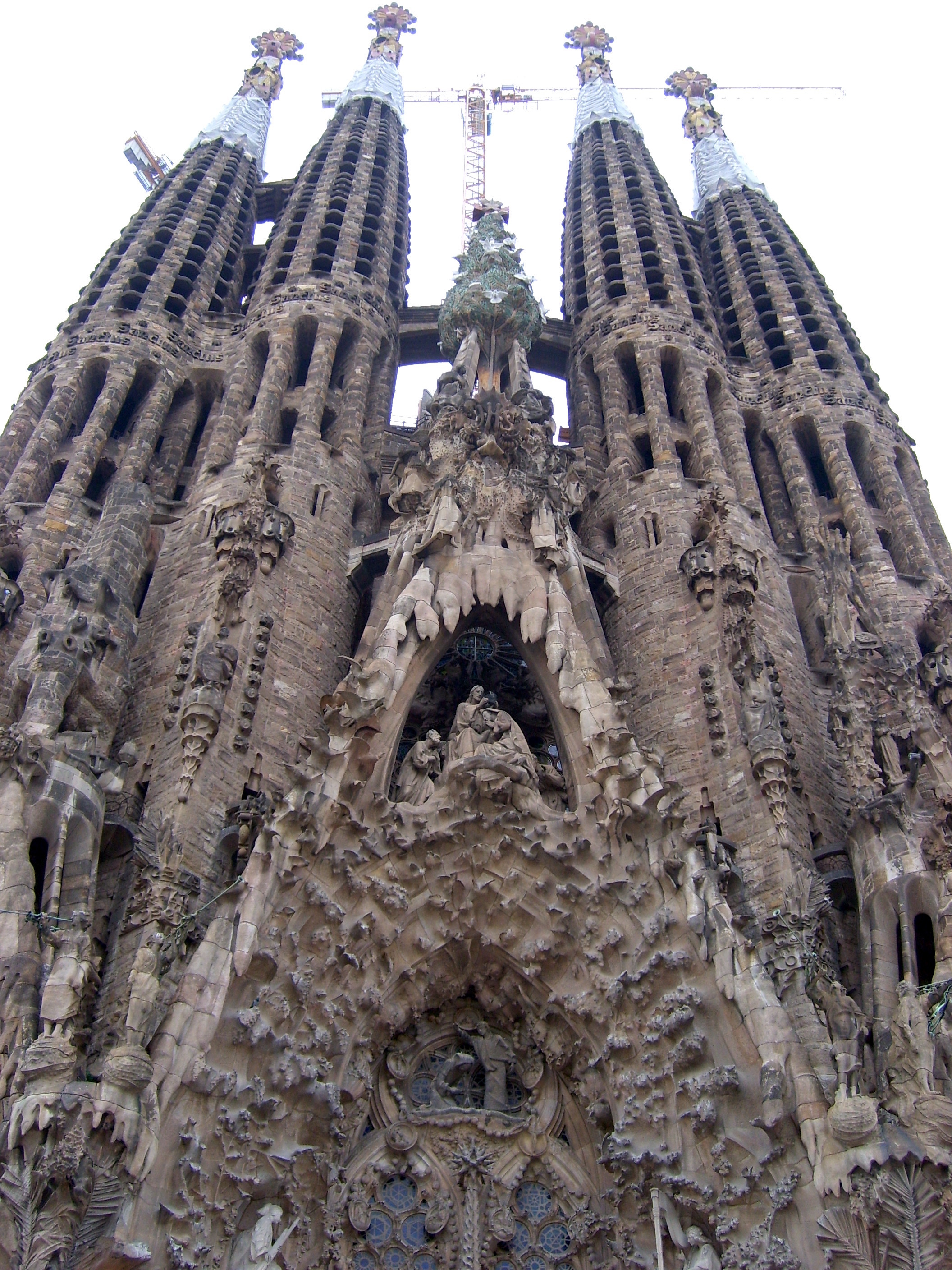

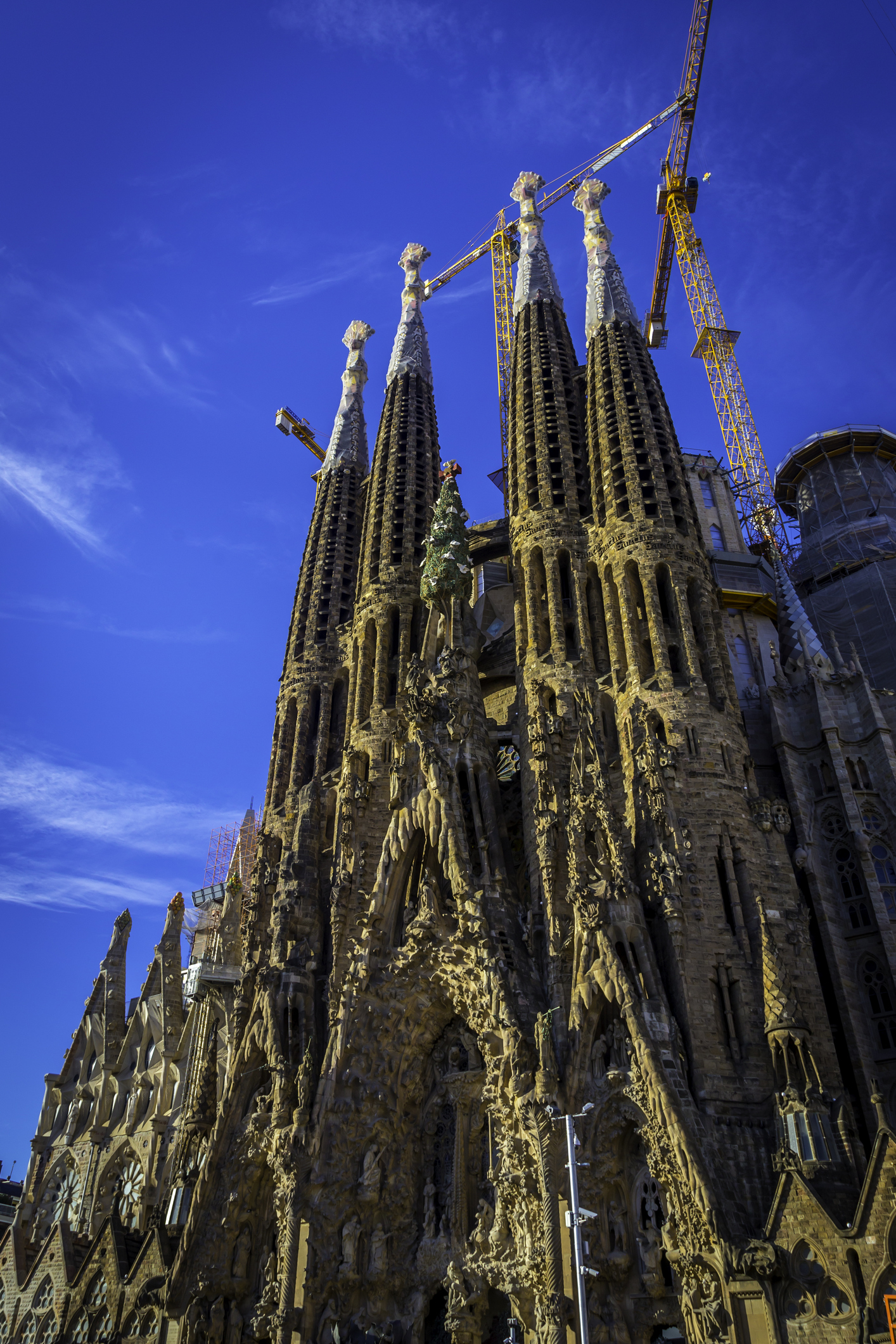

Another advanced technique used during this period was stereotomy, the art of cutting stone into geometrically precise shapes. This method, while rooted in traditional masonry, was employed by Gaudí in novel ways to achieve the complex forms of the building's facades. Particularly in the Nativity and Passion façades, the masonry work showcased not only the technical skill of the masons but also their ability to push the boundaries of stone construction.



Despite these innovations, progress on the Sagrada Família was slow. By the time of Gaudí's death in 1926, less than a quarter of the basilica had been completed. Gaudí's dedication to precision and his willingness to experiment with masonry techniques meant that the project remained labor-intensive and time-consuming. However, his visionary work laid the groundwork for the future development of the building, as well as for the evolution of masonry techniques.

Following Gaudí's death, the construction of the Sagrada Família faced numerous challenges, including interruptions from the Spanish Civil War and financial difficulties. Despite these setbacks, the project continued, with a new focus on incorporating modern technologies to complement traditional masonry techniques. By the mid-20th century, the construction process began to evolve, with an emphasis on efficiency and scalability.

One of the most significant advancements during this period was the introduction of prefabrication. Stone elements were increasingly produced off-site, allowing for faster assembly on-site. This shift significantly accelerated the pace of construction. Masons no longer had to hand-carve each individual block; instead, machines cut the stones into the required shapes, reducing the time spent on labor-intensive carving. This approach maintained the integrity of the design while making it possible to construct larger sections of the basilica in a shorter timeframe.

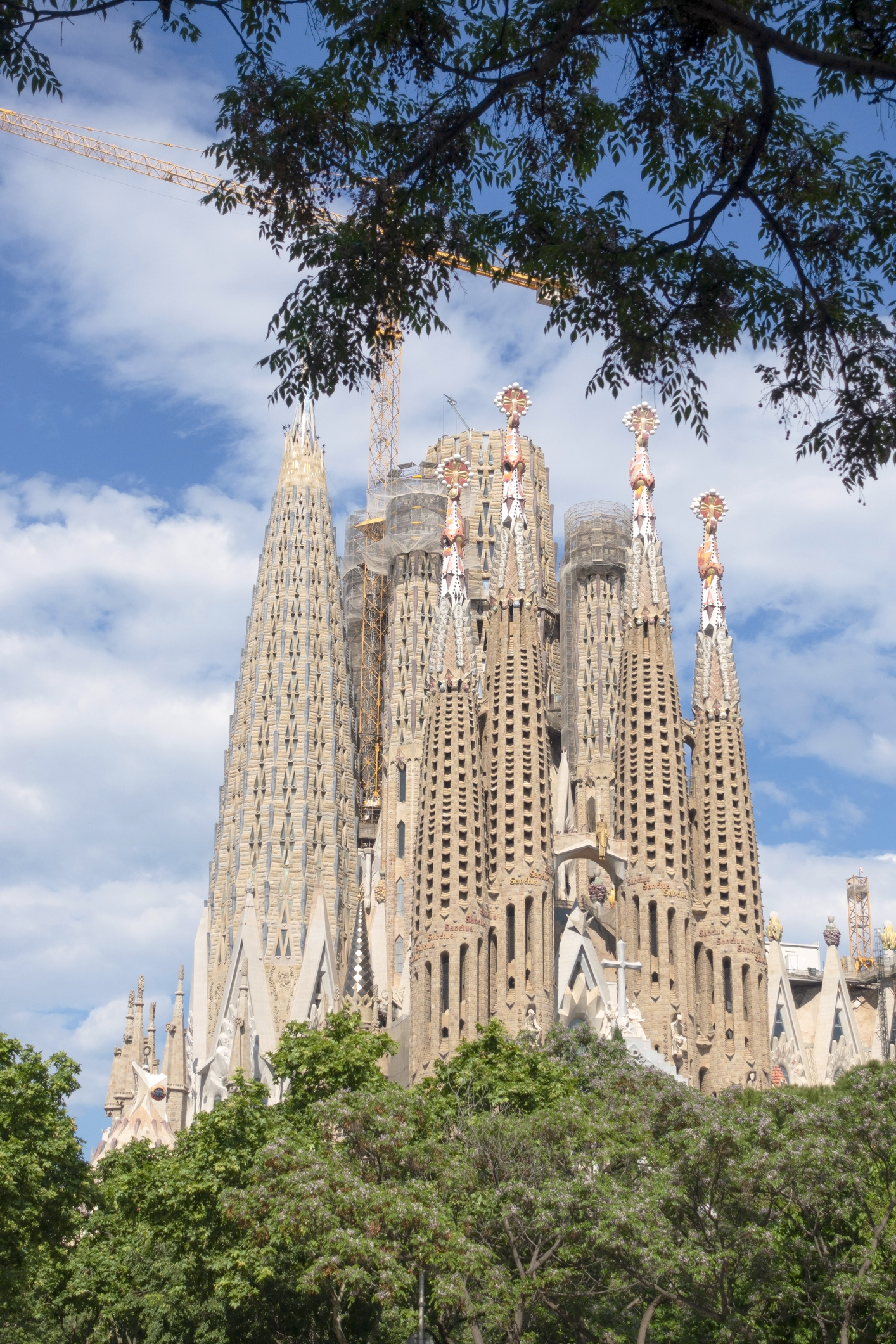

Another significant development was the use of reinforced concrete instead of traditional stone in certain parts of the building. This innovation was crucial for achieving the towering heights of the upper structures, which were part of Gaudí's original vision. Reinforced concrete provided the necessary strength and stability while still allowing for the intricate shapes and forms that defined the basilica's design. Although concrete lacks the traditional aesthetic of stone, its use has been essential in realizing the full scope of Gaudí's architectural ambitions.

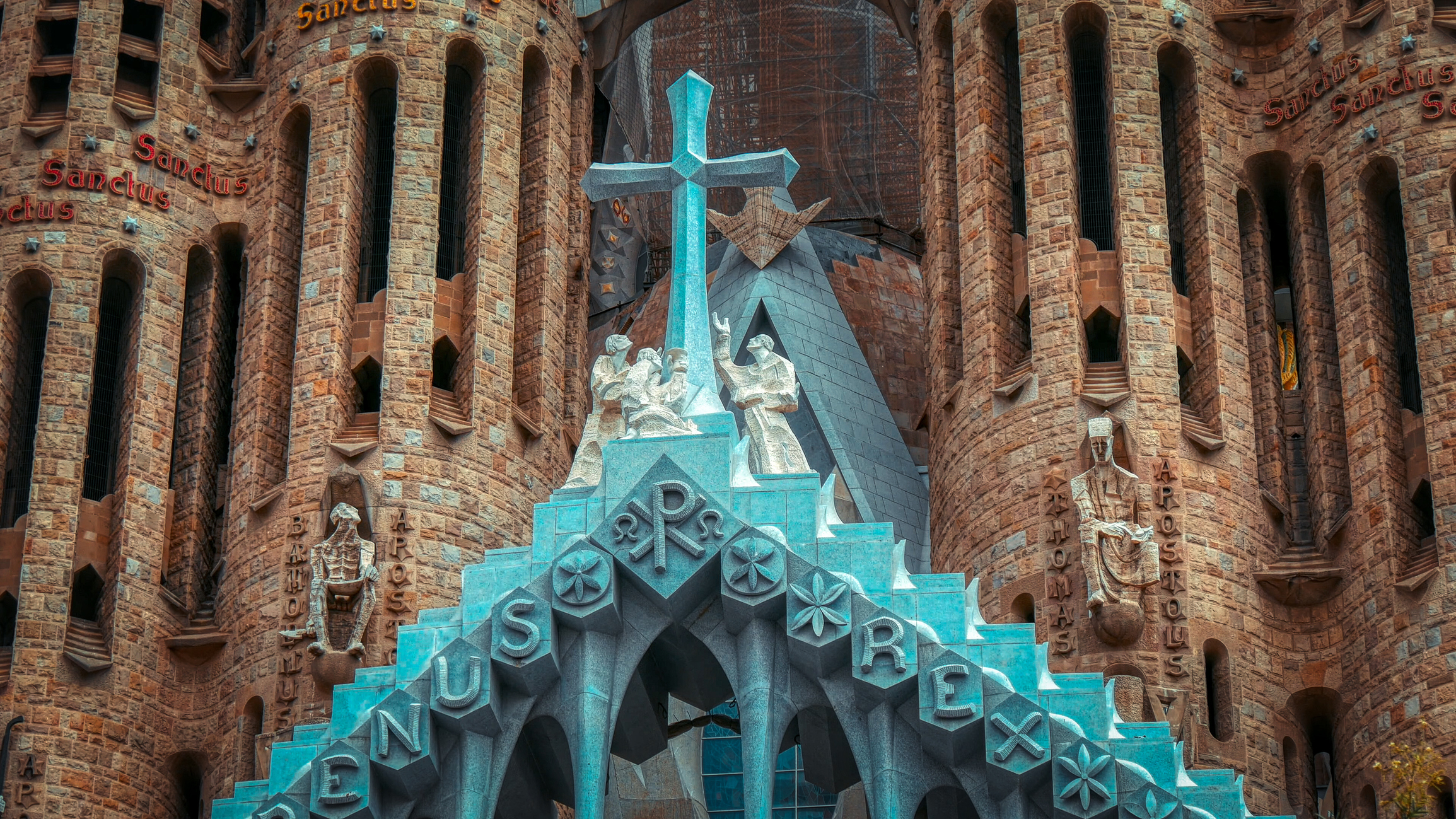

In recent years, technological advancements have continued to shape the construction of the Sagrada Família. The advent of computer numerical control (CNC) machines revolutionized the way stone is cut, allowing for unparalleled precision in shaping the complex forms required by the design. CNC technology has been particularly important in the completion of the Passion Façade, where the intricate stonework reflects Gaudí's vision of dramatic, flowing shapes. This cutting-edge technology has enabled masons to achieve a level of detail that would have taken decades to complete by hand.

As the Sagrada Família nears completion—now slated for 2026, the centennial of Gaudí's death—new challenges have arisen, particularly in the areas of sustainability and material sourcing. One of the key difficulties has been finding suitable replacements for the original Montjuïc stone, which is no longer available due to the closure of the local quarries. Modern contractors have had to source alternative stones that match the original material as closely as possible in terms of appearance and structural integrity.



Sustainability has also become a significant consideration in the construction process. With growing awareness of environmental concerns, the Sagrada Família project has sought to reduce waste and energy consumption wherever possible. Modern prefabrication techniques have helped to minimize waste, while the use of local materials has reduced the carbon footprint associated with transporting building supplies. These practices reflect the broader trend within the construction industry toward more sustainable and environmentally responsible building practices.

Additionally, 3D printing technology is being explored as a way to enhance the construction process further. Although still in its early stages, 3D printing offers the potential to produce complex stone shapes with greater efficiency and less waste, presenting exciting new possibilities for the future of masonry in large-scale construction projects like the Sagrada Família.

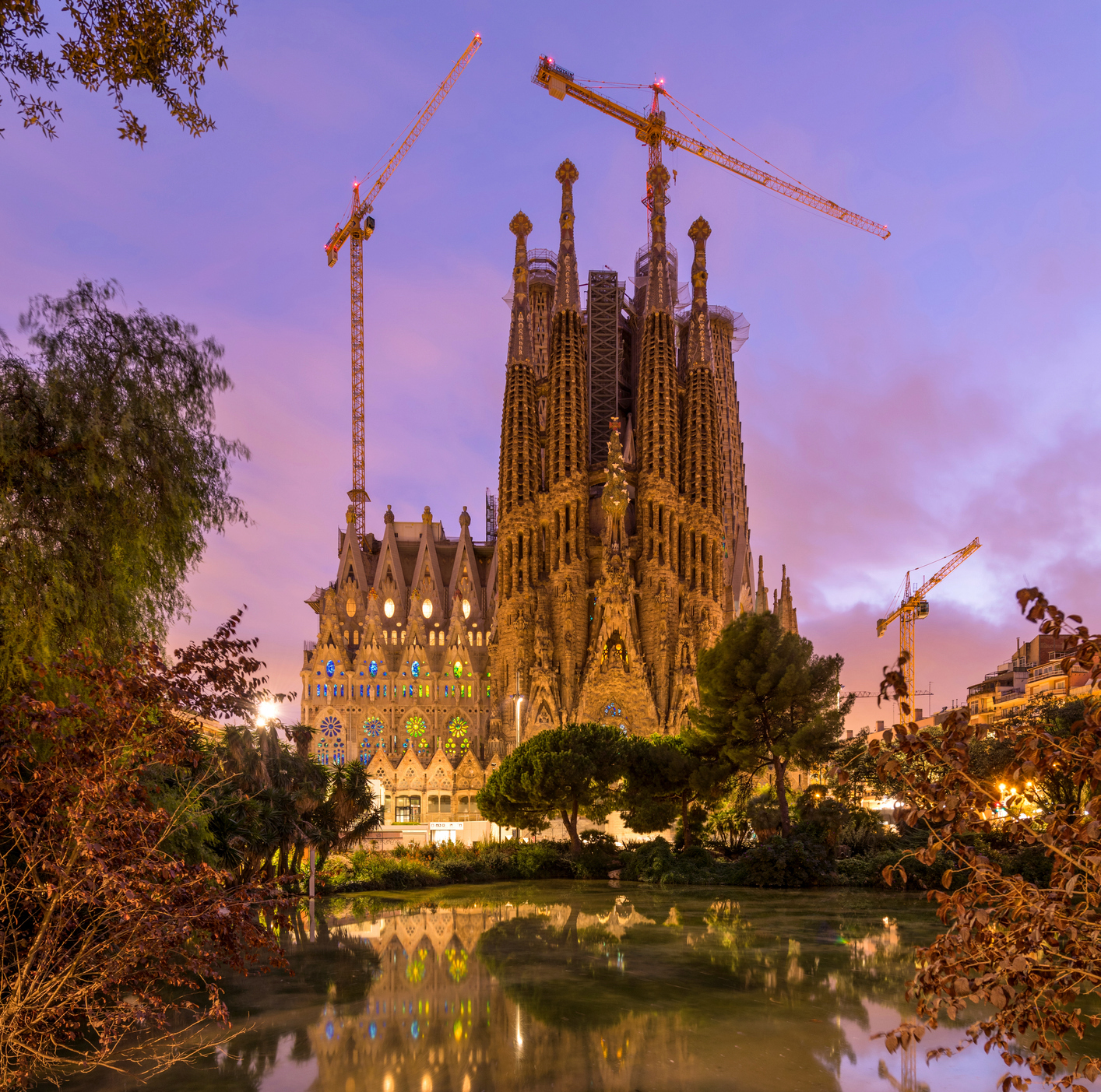

The construction of the Sagrada Família is a testament to the evolution of masonry techniques over more than a century. From the traditional hand-carved stones of the late 19th century to the precision-cut forms produced by modern CNC machines, the project has demonstrated the adaptability of masons and the masonry industry as a whole. As the building moves toward its long-awaited completion, it stands as a symbol of how tradition and innovation can come together to create something truly extraordinary.
